Repair / Restoration  for the Porsche 356A SWF Turn Signal Switch
 {Type 356 Signal Switch}
 {Porsche 356 Pre-A, A, & B/C, 912 & early 911 SWF Blinker Switch }

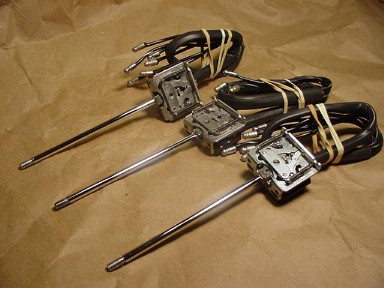

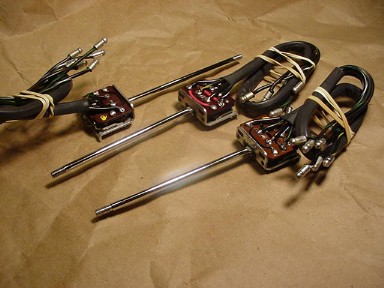

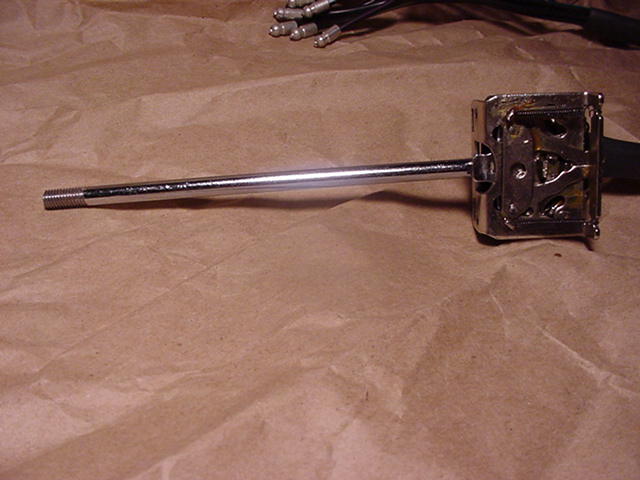

 Restored   SWF  Blinker Switches For 356A
df 2017
356A  1956 thru 1959
Reproduction wiring cover for the Porsche 356A SWF Blinker Switch
              Correct for coupes and open cars, 1956 thru 1959
                                           Porsche Part  # 644 61 245 nla

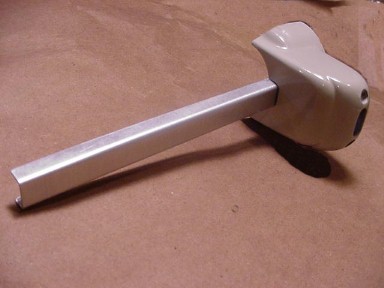

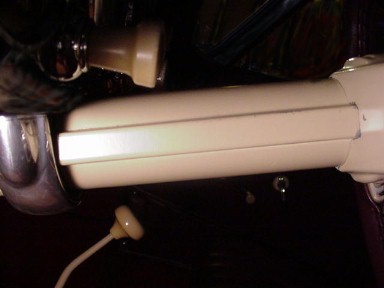

Here is my reproduction blinker wire cover.

A nice fitting cover of 24 Gage T-6 Aluminum 6 inches long, that will fit both coupes and open cars, and can be trimmed.

                                             Note: Matching paint Porsche 356  Interior

                                                       There is no correct color!

Blinker switches, Blinker handles, Steering columns and Steering wheels & Horn rings came from different suppliers. In small batches (by  today's standards ) for over a dozen years . In ivory, gray and beige. Each may have been a slightly different shade.
 Given the  degradation of paints  and plastics over  60 years then  add to that  the  chemistry changes of paints  and  plastics over that same period.

It would be folly  for  anyone to claim they have or know the  correct  color!

It seems, today they are usually repainted to match ( with  a close color )  when the interior is redone.

Blinker switch housing is for illustration only
E-mail       info@type356a.com

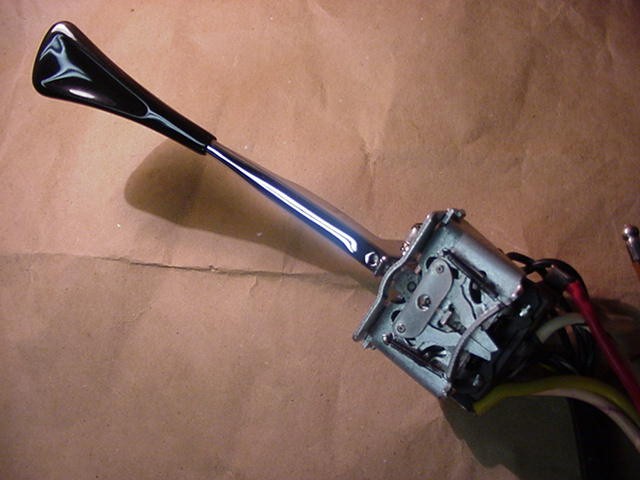

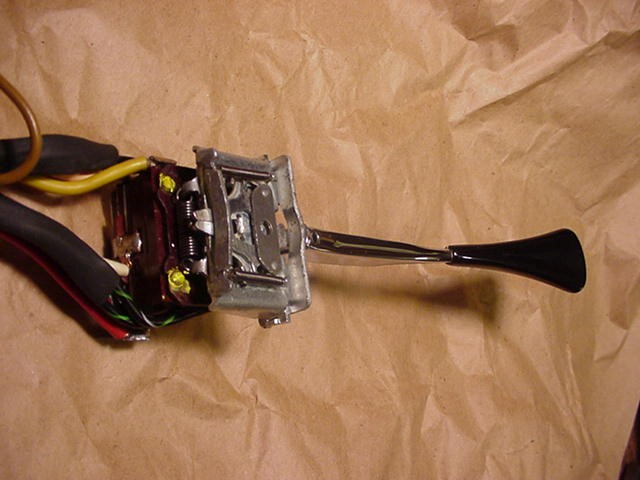

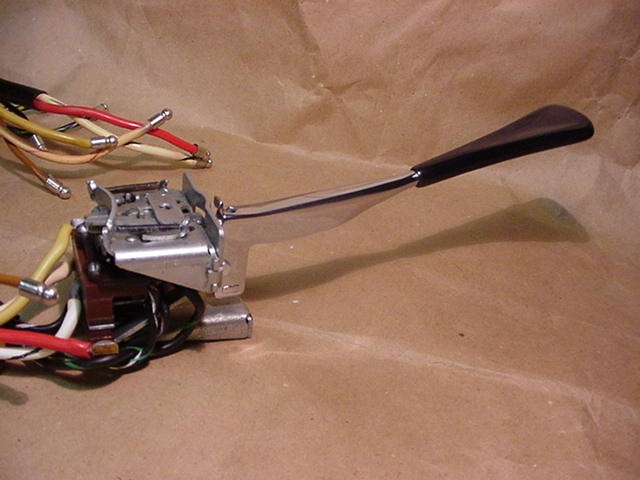

Repair / Restoration  for the Porsche 356B/C SWF Turn Signal Switch 1960 - 1965

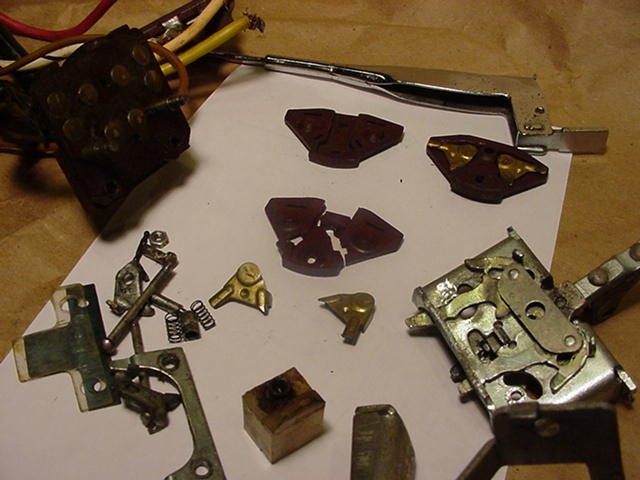

Switch disassembled, cleaned, contacts burnished & polished, stalk/lever re-chromed, new springs, reassembled, adjusted, lubricated, wires and connectors replaced / re-soldered as needed, new wiring sheaths. Tests: action+function, electrical; meg ohm to ground & load.  My  correct, new  handle/knob is installed.   $250.00  ( Included,  my mounting screw set, No Charge )

These  switches  are restored;  cosmetically, mechanically and  electrically. They under go continuous  testing  throughout  the  restoration process.

      Replacement, restoration or fabrication of broken or missing internal parts , extra $                                                               Payment upon completion
              No exchanges at this time. Restoration your switch only

          No  reproduction switches  accepted,  they are not repairable
356 B/C  1960 thru 1965    912/911 1965 thru 1968
356A  1956 through 1959

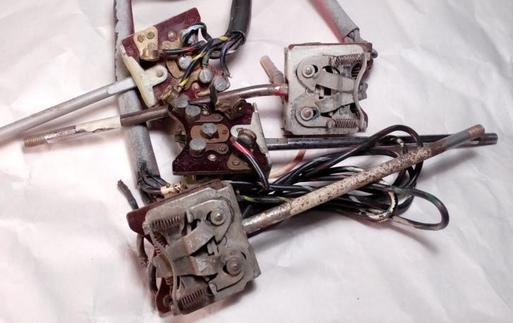

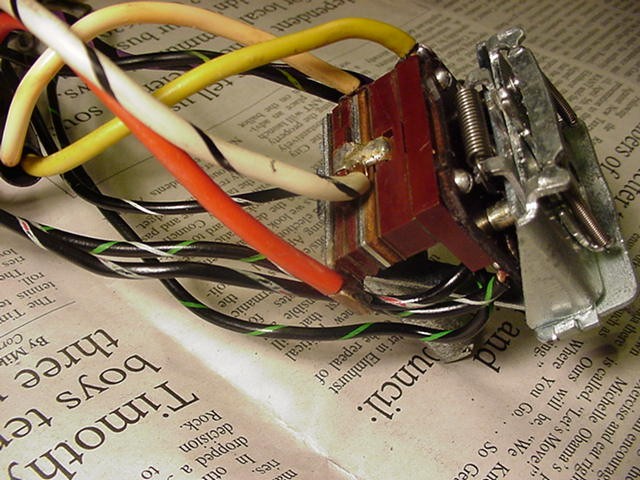

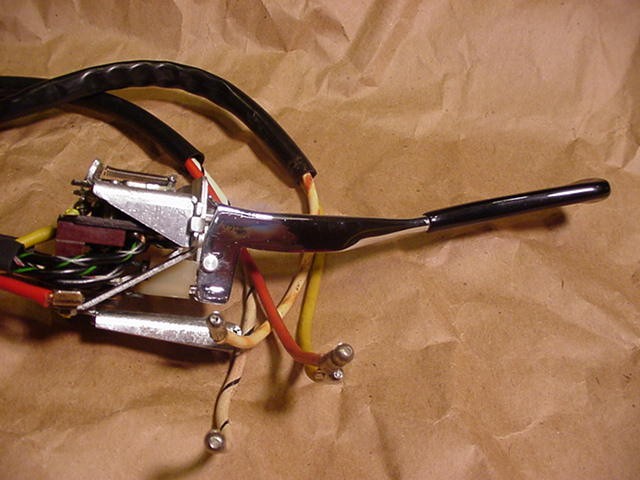

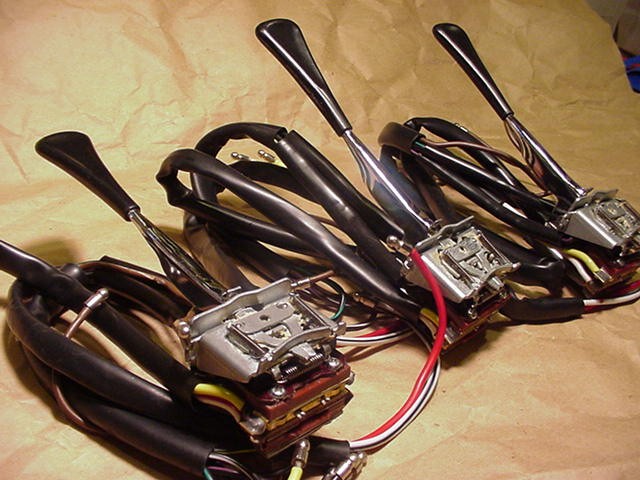

Pix of recent customers switches.  Before and after
BLINKER SWITCH NOTES:

Warning!
Disconnect battery  before working on any electrical under dash.
There are circuits that are live all of time.
If shorted to ground could fuse (weld to ground) and start electrical fire!
Some of these circuits are; B /C Turn-signal switch ( lower switch, hi-lo-flasher ), Horn, Light switch, Horn brush contact on steering column tube and Ignition switch.
Apply's to all 356 cars.

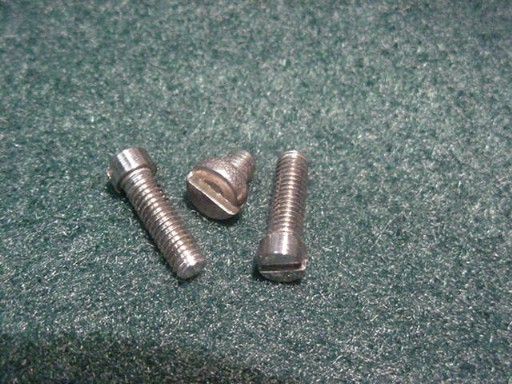

Blinker switch mounting screws.

The use of wrong screws for mounting the switch ( too long ). Can result in damaging the internal, movable contact carrier plate. See pix below.
Note, broken moveable contact carrier plate.
NOW AVAILABLE:

For 356 B/C Blinker switch

MOUNTING SCREWS in stainless steel!

$9.00 set

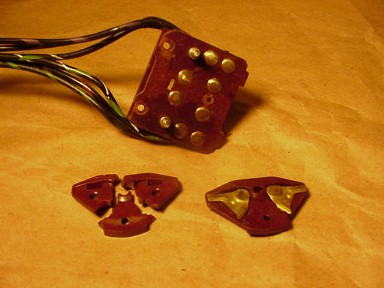

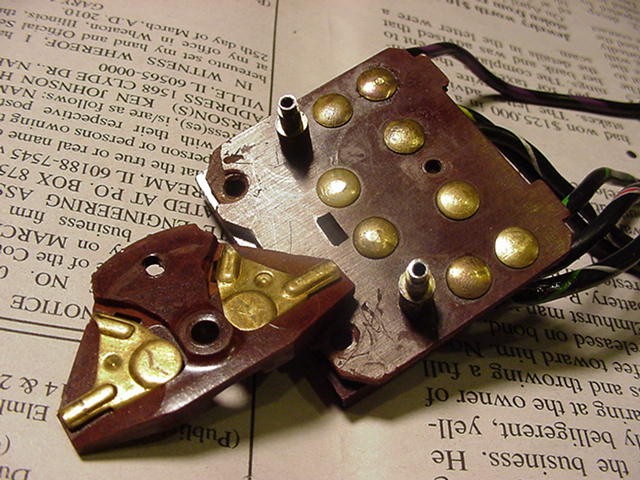

Broken  moveable contact carrier plate on left.

Good plate on  right.
This is a time consuming repair.

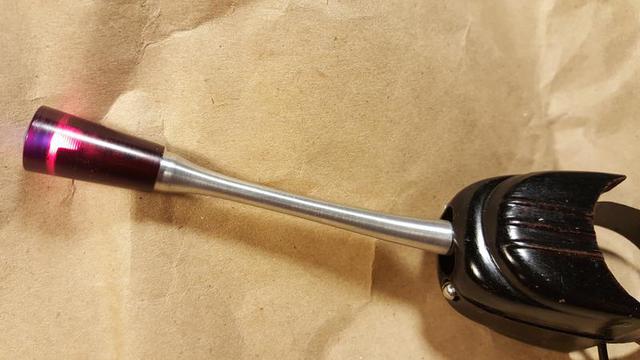

                      ' Red Tip '  Blinker Switch ( light in  stalk )

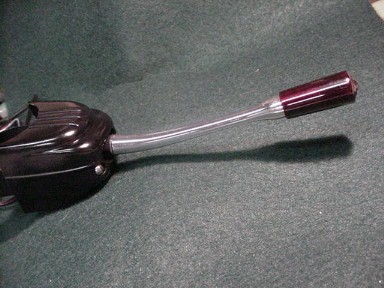

   Repair / Restoration  for the Porsche 356 Pre-A SWF Blinker Switch
Pix of customers switch

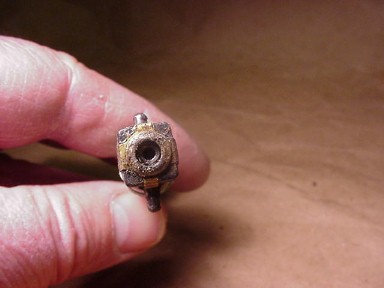

The switch came to me because indicator  light was not working, broken wire in stalk.
Click on any thumbnail to enlarge

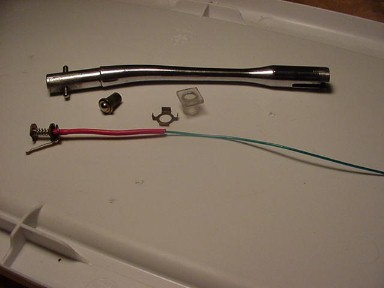

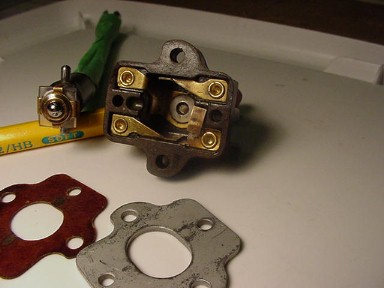

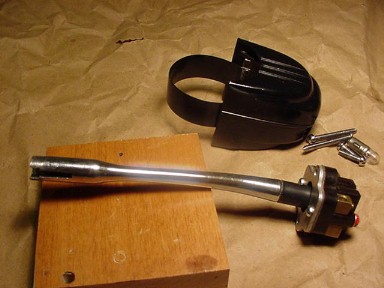

Switch needed to be completely taken apart to effect repair. ( these switches were never meant to be serviced ) The action was very stiff, you can see dried up grease and dirt accumulation. Also note;  in the lower contact the detent ball was loose. A new detent  contact insulator was machined, new detent spring installed, broken wire replaced & all contacts burnished.

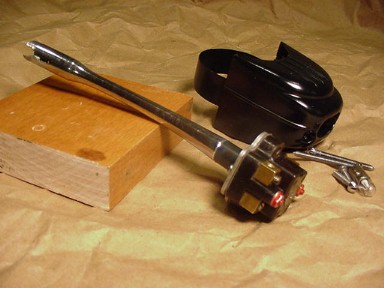

Cleaned, lubed & reassembled. Stalk and lens were  buffed  bright.
Switch was  mechanically and electrically  tested.

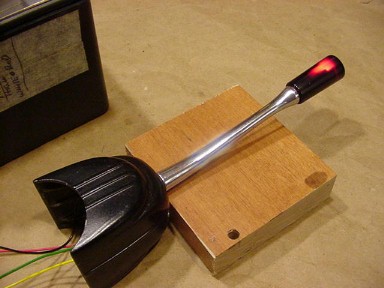

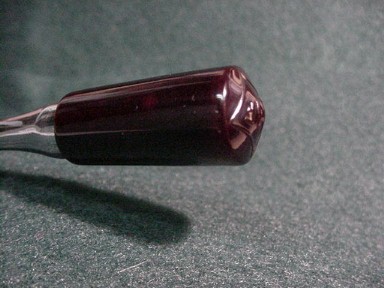

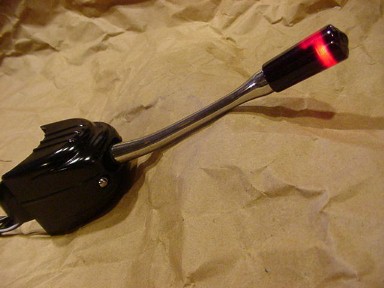

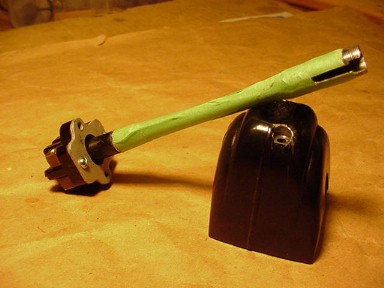

      Pre-A Red Tip Blinker Switch Restoration

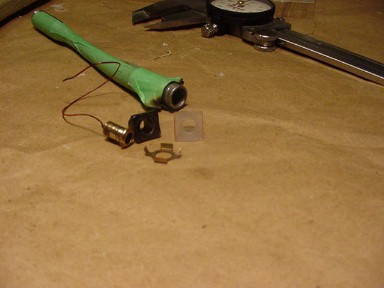

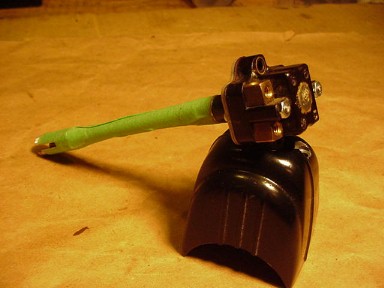

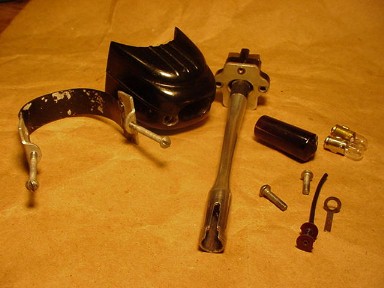

Here are pix of another  Pre-A switch project.

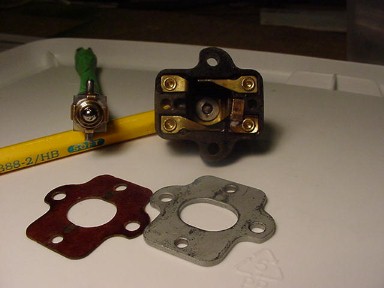

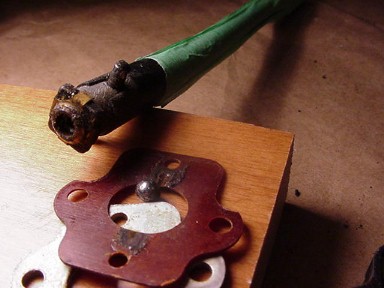

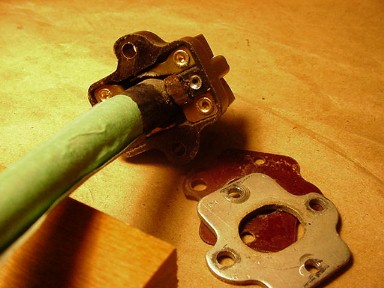

This switch had many parts missing, when I received it.

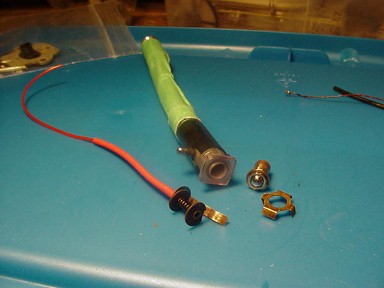

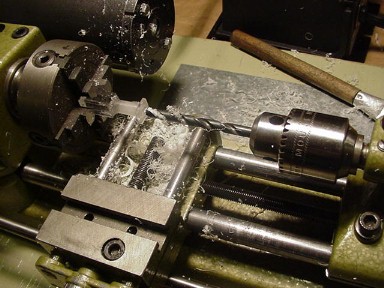

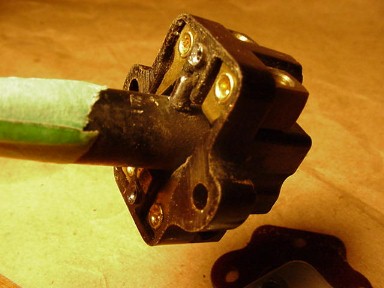

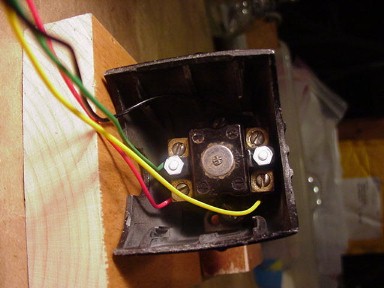

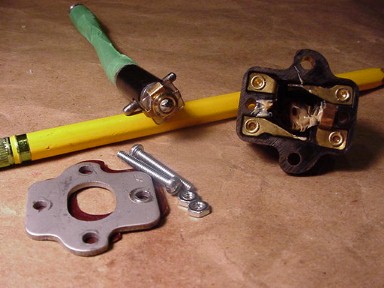

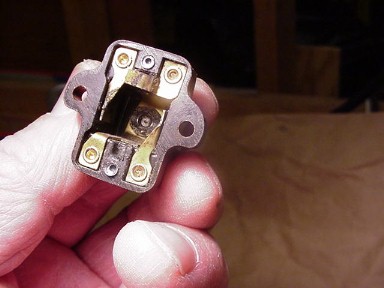

A new,  bulb base / contact assembly needed to be fabricated (assembly with pig tail). Ground contact for stalk was broken, a new contact was made. Again the detent contact spring was replaced and set in new insulating bushing. New dog point set screws for the switch were fabricated. It is waiting on a lens to complete project.
Click on any thumbnail to enlarge
Historical notes about  SWF:
Throughout the  Porsche 356  production era. SWF was a main OEM supplier of electrical  components like;  switches, blinker switches & lights, wiper  motors, wiper  gear boxes & wiper blade assemblies to Porsche.
SWF :   Spezial Werkzeugfabrik Feuerback translated-  Specialty Tool  Factory Feuerback - (location Stuttgart-Feuerback)

Began operations in  1923 making specialty hand tools, by 1926 they were manufacturing automotive  blinker indicators and switches, starting in 1927 automotive electrical windshield wipers and components were manufactured. In 1936 they were taken over by Gustave Rau,  a private concern. By 1938 they were renamed SWF  Spezialfabrik für Autozubehör Gustav Rau GmbH or Special Factory for Automotive Accessories Gustave Rau GmbH.
Post  WWII SWF became part of the  German economic miracle as a major OEM supplier for the  German and European auto industry.
In the 1970's Gustave's son sold the company to international conglomerate ITT and it became SWF Auto-Electric GmbH, then in 1998 they sold to the giant, French manufacturing concern, Valéo SA. ( Ferodo, SWF, Paris-Rhône, Cibié, SEV-Marchal, to name  a few brands ).



                                              That's enough for now.    " genug ist genug "    Doug...

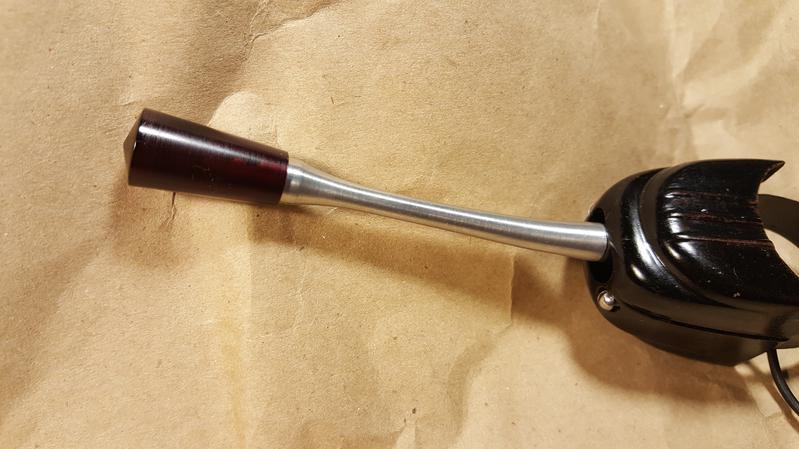

Lens buffed bright and reunited with blinker switch.
Your switch: cleaned & brightened, stalk replaced with new ( Polished Stainless Steel stalk ), new springs, mechanism lubricated & contacts burnished. Sheath replaced. Wires and bullet ends replaced as required. Electrical & mechanical function test.  $150.00
Also included, my mounting screw set, No Charge

                                          Replacement of broken / missing internal parts extra $.
  Questions?   e-mail  Doug

      info@type356a.com

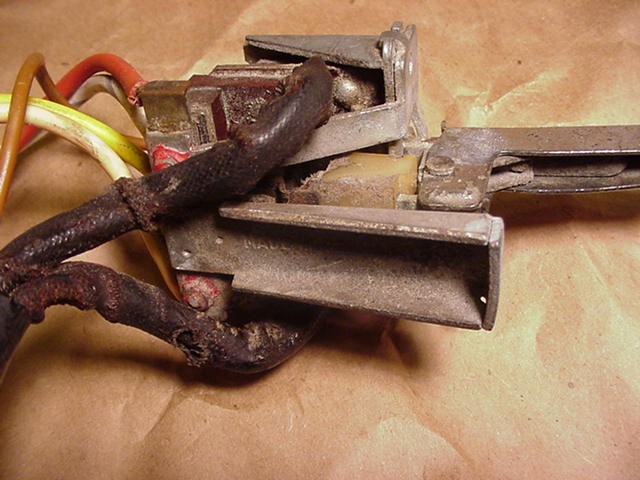

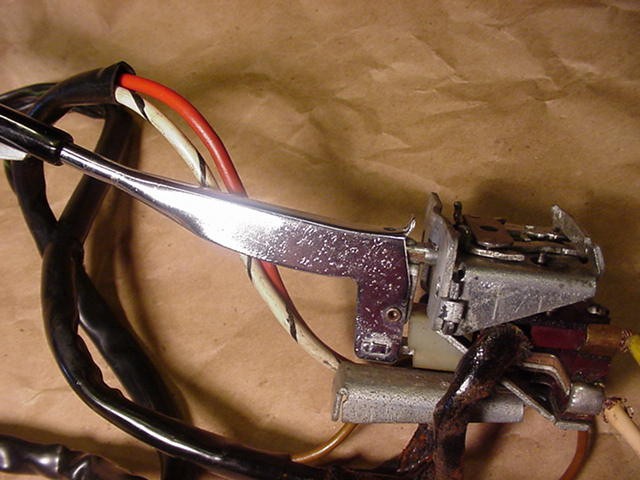

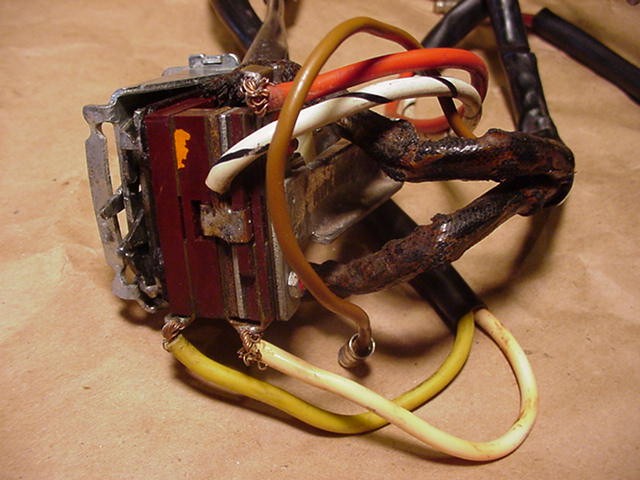

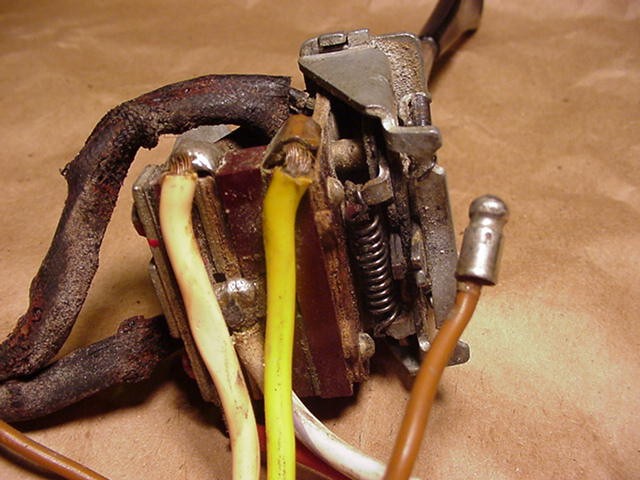

Before restoration
Click on any thumbnail to enlarge

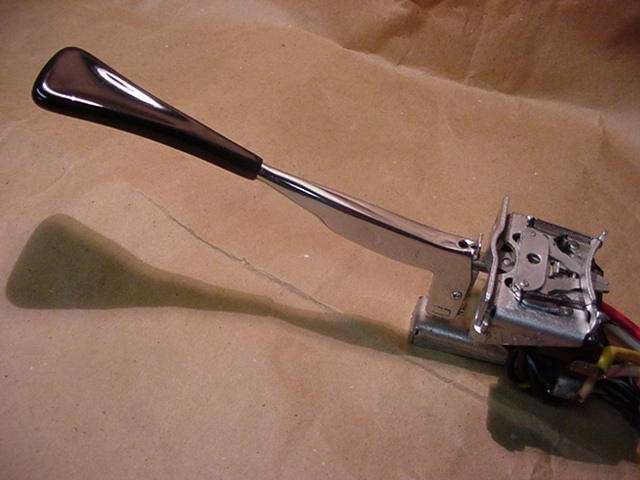

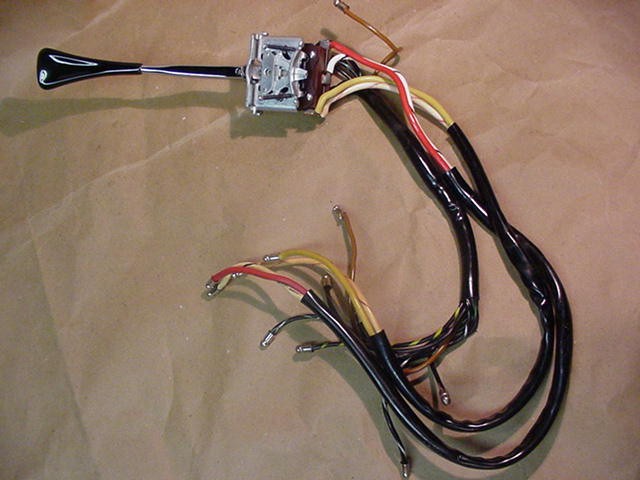

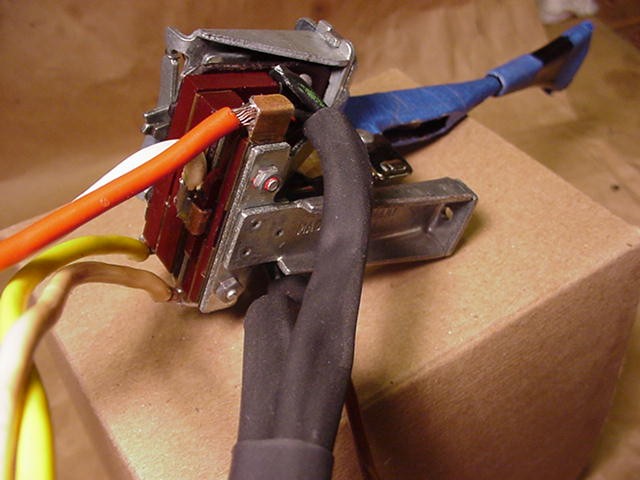

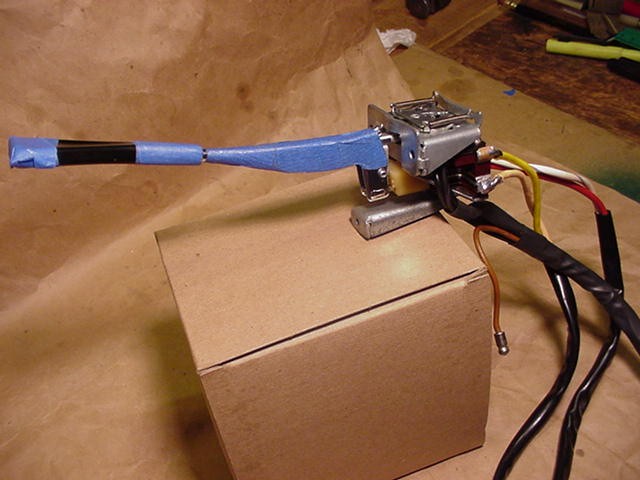

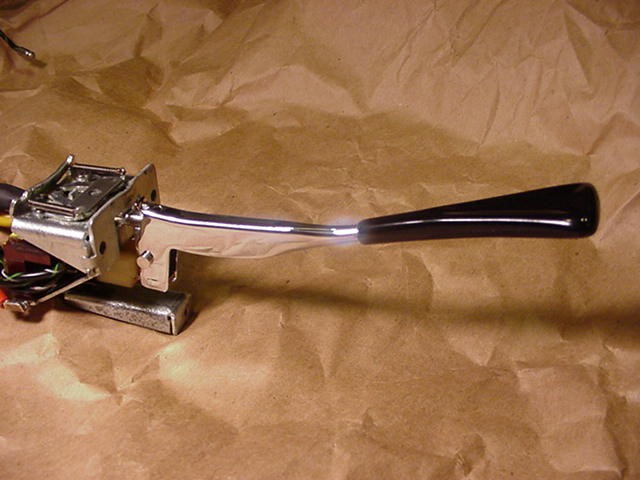

After restoration
BLINKER SWITCH WIRING:
Many request for blinker switch wiring information. This should shed some light on wiring and switch / relay functions.

B/C Turn signal switch.

Here is link to a wiring diagram.

http://www.pelicanparts.com/356/356B_Parts/9_electrical/356B_electrical_dia.jpg

The problem with color coded  diagrams is that while pretty, they may or may not reflect what is on the car.
Nor do they interpret  internal connections of switches, relays, etc..
Although more tedious it is better work with a line drawing of the wiring.



Lower part of switch ( dimming/flashing) .
Color code for Wires on switch;

Wires under dash may be same or different.

Input; White w/Black tracer, #56 is from light switch on dash. Hot when dash light switch is turned on.

Input; Red #30 is from light switch. Hot all of time, traces back to  fuse 2.

Output; Yellow #56b. To fuses 9/10 then to low beams.

Output; White w/Red tracer #30/56 (most are faded to pink).  To light signal relay.

Brown wire  goes to Horn contact.

Function of Low-beam / Hi-beam Lever:

Lever back, Low-beams; White w/Black tracer, #56 in. Goes out to Yellow #56b to fuses 9/10 then to Low beams.
Lever forward, High-beams; White w/Black tracer, #56 in. Goes out to White w/Red tracer #30/56 to signal relay then to fuses 11/12 then to High beams.
Lever pulled back hard, passing flasher; Red #30 in. Goes out to White w/Red tracer #30/56 to signal relay. Can flash Low or High beams depending on  Light signal relay ( see below ).


Function of Light signal relay:

It's coil is controlled by light switch on dash.

When dash light switch is off, passing flasher. Flashes Low-beams
When dash light switch is on, passing flasher. Flashes High-beams.

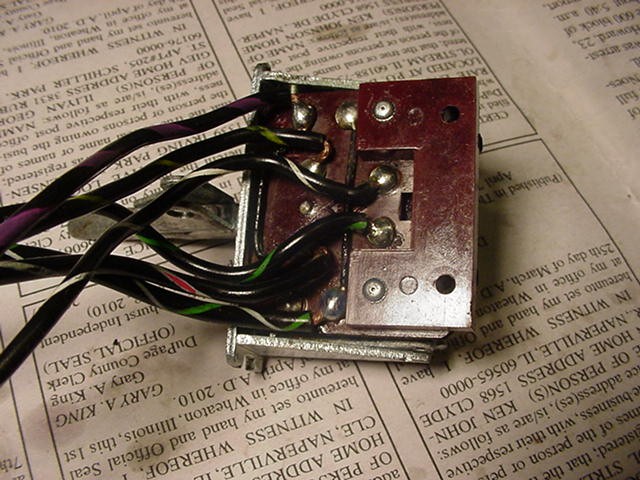

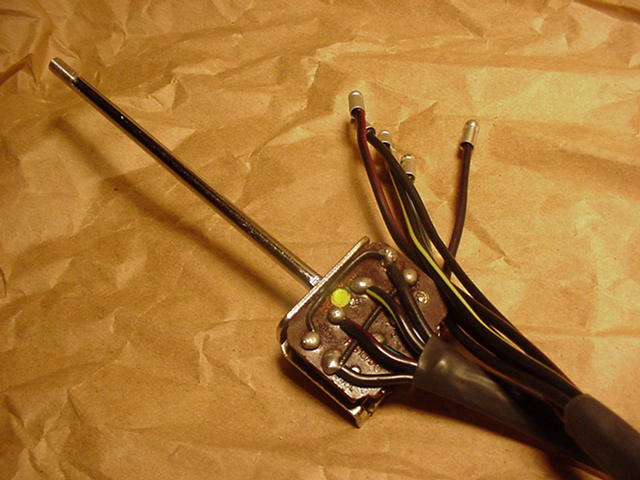

Upper part of switch ( blinker lights ) .
Color code for Wires on switch; Wires under dash may be same or different.
This information also covers  the 356' A Blinker switch


Input; Black w/White-Green tracer, #54 is from blinker relay.

Input; Black w/Purple tracer is from brake switch.

Output; Black w/Yellow tracer, to Left-rear blinker.

Output; Black w/White tracer, to Left-front blinker.

Output; Black w/Red tracer, to Right-rear blinker.

Output; Black w/Green tracer, to Right-front blinker.

This color code works for all 356' A/B/C switches.

Notes:

Brown wire  goes to Horn contact.
Passing flasher switch works (is powered ) even when dash light switch & ignition switch are off (power from Red #30 wire ).
Yellow wire #56b is output to Low beams.
Dimming/Flashing wires; marked 2.5mm on drawing. Equivalent 14 gage wire.
Turn-signal wires; marked 1.5mm on drawing. Equivalent 16 gage wire.
This information is provided to give you a good over-all idea of turn signal switch functions and help with wiring problems.  It is by no means complete or detailed for any of the 356' models.
  Blinker switch wiring help
Long Page
Lots of
Good Stuff!!
   To send me your switch.
Shipping Address:

Doug Feistamel
1415 S Ardmore Ave
Unit 6316
Villa Park IL 60181-5842 USA

USPS, UPS , Fed-Ex
 All international post & shippers

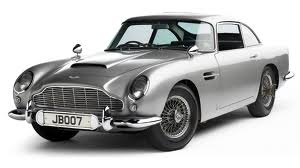

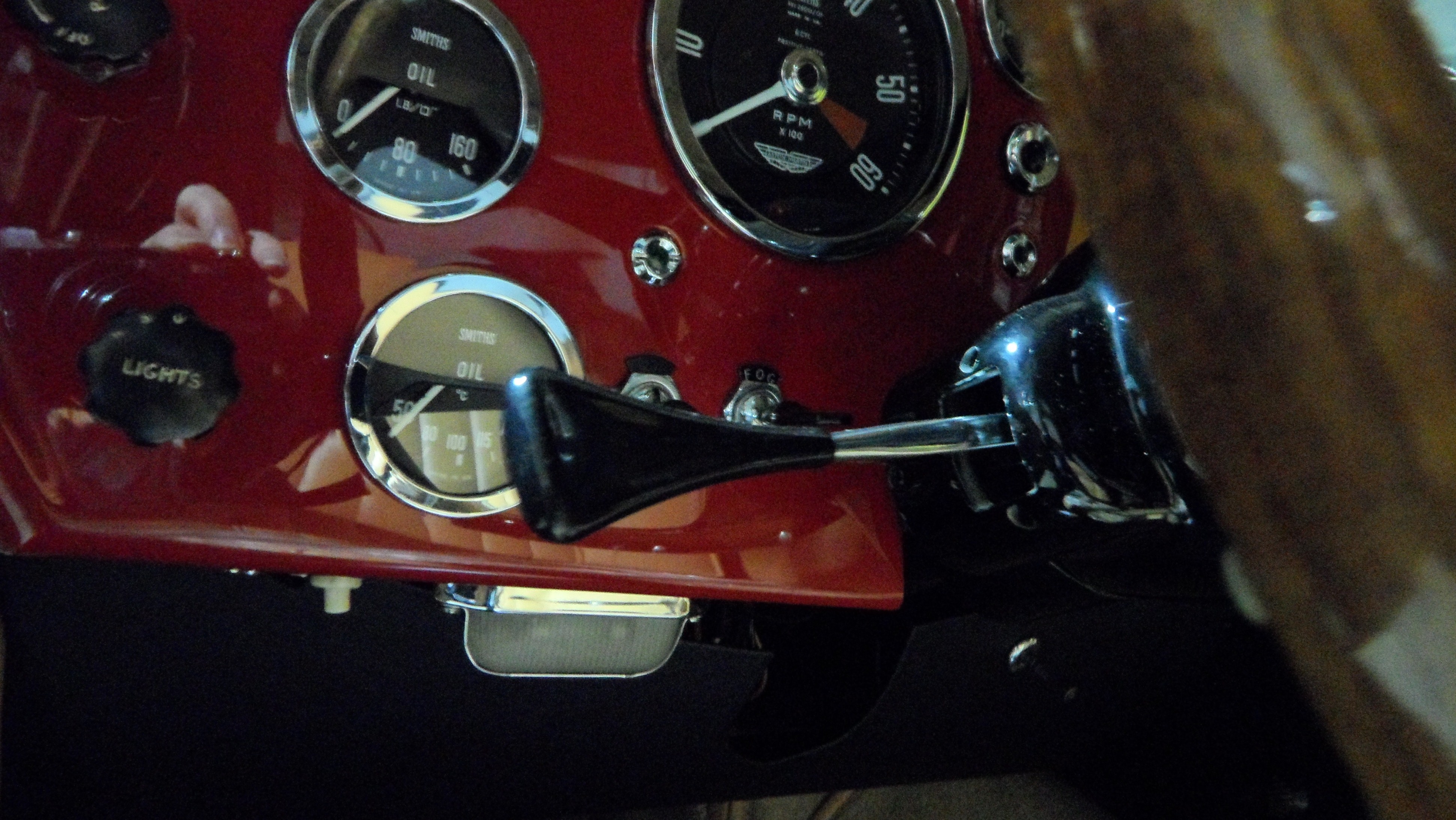

Repair / Restoration for Aston Martin Late-DB4, DB5 & DB6
Dip and Indicator Switch
With SWF switch PT # 23.37.224 ( paddle handle )
  Questions?   e-mail  Doug

      info@type356a.com
For this restoration  service, pricing and  lead  time  please  contact Doug  e-mail  below

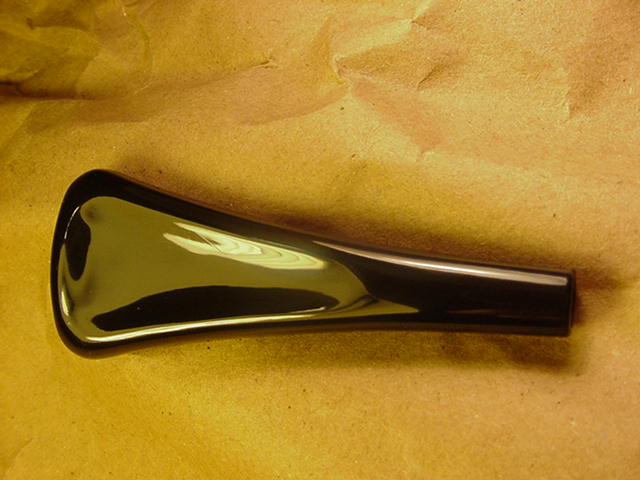

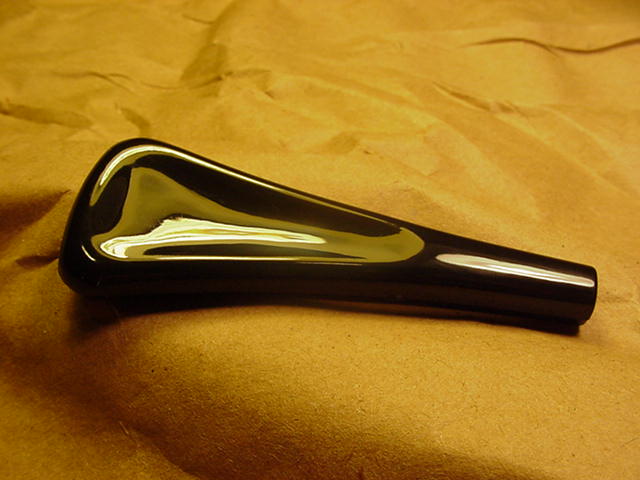

New Handle / Knob for the Porsche 356B/C SWF Turn Signal Switch
                     BLINKER SWITCH HANDLE / KNOB  Fits; 356 B/C 60-65    912/911 65-68
                                                 Porsche equivalent part # 644-552-853-05

      Brand new part. From my  tooling.  High strength ABS plastic, injection molded in  Addison IL USA

     Concours quality restoration handle / knob

Not being  able to find  a quality handle / knob to compliment  my restored  switches. I decided to manufacture my own, here they are
These are my parts
    Made in the USA
These are my parts
    Made in the USA
356 B/C Blinker  Switch Handle  Part # 644-552-853-05

Price $32.00 each
To place order go to;  Services, Kits, Parts, Page
356 A Wiring  cover.  Part # 616.61.245.nla
$20.00 each Price

To order go to;
 Services, Kits Parts Page
 As shown in drawing. Bulb in stalk has two + connections. (there is NO ground connection to switch)
With turn signal lever set, let’s say to right, + & R contacts now connected.
Two things happen.
The + contact is now a low resistance negative (pulls negative thru the turn signal bulbs to ground).
Stalk bulb lights-up and flasher unit/relay (internal) heater starts to heat-up.
When flasher unit/relay (internal) heater makes it's contact, output 49 a/s becomes +, stalk bulb goes out (two + connections) and turn signal bulbs light.
Flasher unit/relay (internal) heater cools then it's contact opens, cycle starts again. Scenario is same for left function.
Porsche 356 Pre-A Red–Tip Blinker Switch
This information  provided to dispel the  mystery  surrounding  the  Lighted  Pre-A Blinker  switch.

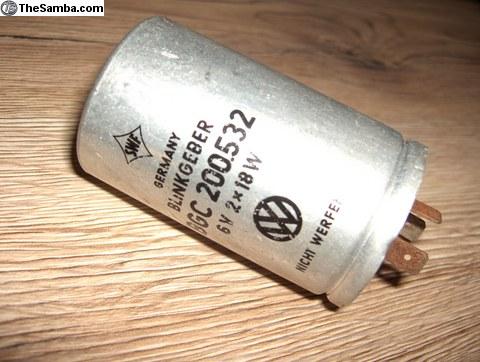

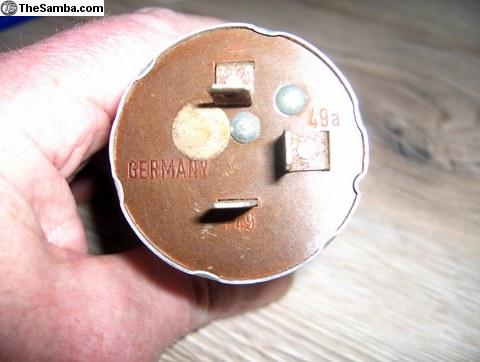

Wiring connections for non-original flasher unit/relay
Indicative of currently available flasher unit/relay

Notes:
Two wire flasher unit/relay could be used ( 'can' is the ground connection)
For bench test; To make flasher unit/relay work. You will need at  least one 6V 18-Watt bulb for load.
K is +6 V all of time, goes to flasher unit then back to fuse block, fuse #1.
If stalk bulb does not work on car. Apply 6V across K & +, if  stalk bulb lights. You have other external issues.
I would use the 6 volt 1.2 watt instrument bulb. 900-631-002-90
The .6 watt maybe a bit too dim since we are pulling the ground thru the turn signal bulbs.
         e-mail  Doug

      info@type356a.com
For replacement  Paddle handle ( Late-DB4, DB5 & DB6 )  See Blinker  switch handle above

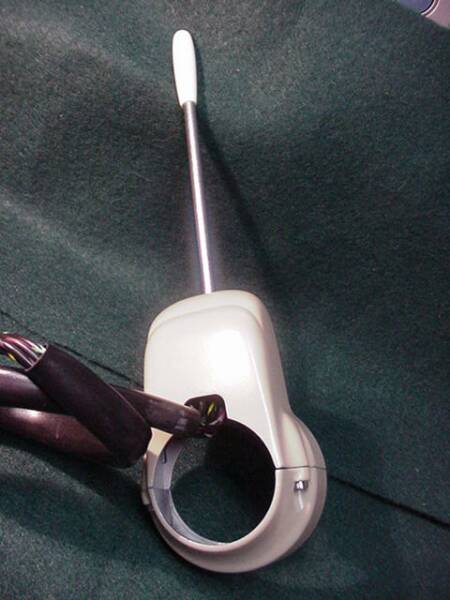

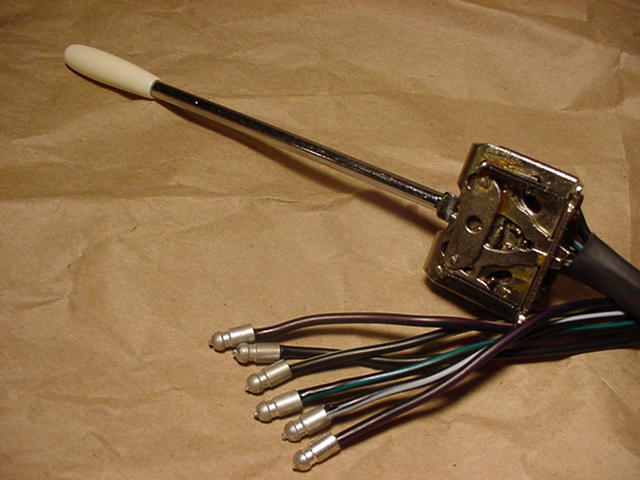

Very early Porsche 356A SWF Turn Signal Switch
Please take a look  at  switch below.
This is the  early  version of the SWF 356 A switch used from 1956 into 1957.
This seems to be  SWF's first attempt at a self canceling  switch ( as you know the  356 pre-A  blinkers were  non- self canceling ) . Although  original to the 'A' cars. This switch was of very poor design and function.
Almost  all were  replaced (including my 56' A coupe) with the more robust and common next generation switch pictured above.

                                      They are  not  repairable.   I can not  restore them

                   If your switch looks like this.  Do not send. Throw is junk box or sell on Ebay...
E-mail       info@type356a.com
 For switch restoration email Doug. To facilitate restoration in a timely manner. You will be put on a wait list and contacted when you can ship switch. This wait maybe  weeks or months. To be fair, all request handled in order received, no exceptions.   Sorry for any confusion about this process.  It would be prudent to plan  ahead.
 For switch restoration email Doug. To facilitate restoration in a timely manner. You will be put on a wait list and contacted when you can ship switch. This wait maybe  weeks or months. To be fair, all request handled in order received, no exceptions.   Sorry for any confusion about this process.  It would be prudent to plan  ahead.

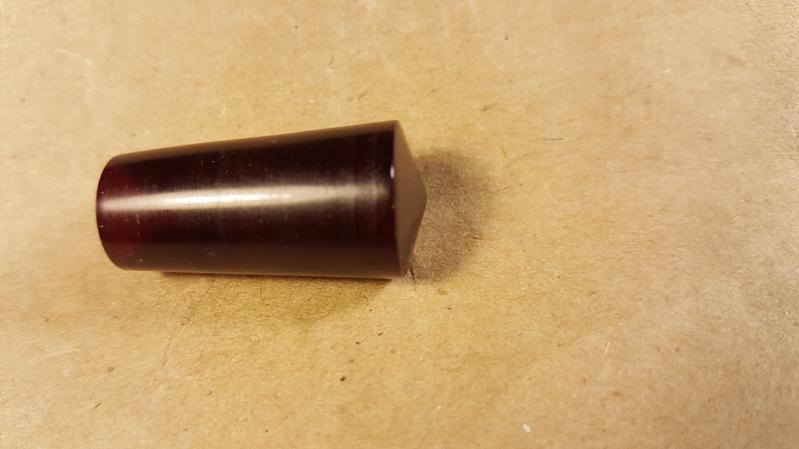

Replacement Lens for 356 Pre-A  SWF blinker switch

Have had many request for  the Pre-A blinker switch lens. Made  a few of these for customers over the  years.
If you  need  a lens ( broken, missing or just  want to save your  original ) this might be a solution.

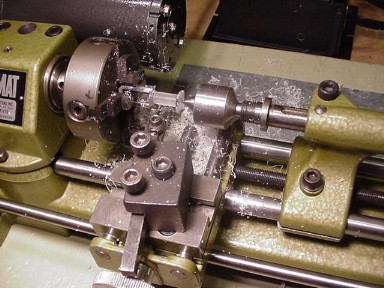

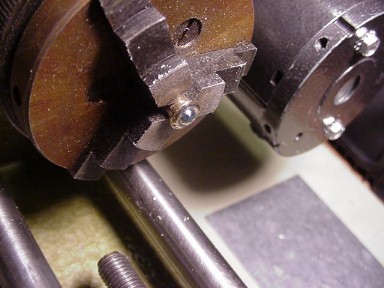

This is not a cast reproduction.. It is  a turned, threaded and polished  durable acrylic replacement lens.

$65.00 + post  6 weeks  lead time.
         e-mail  Doug

      info@type356a.com

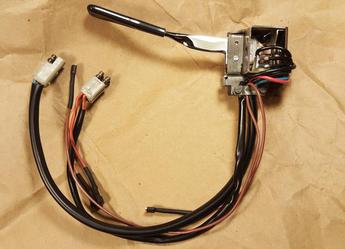

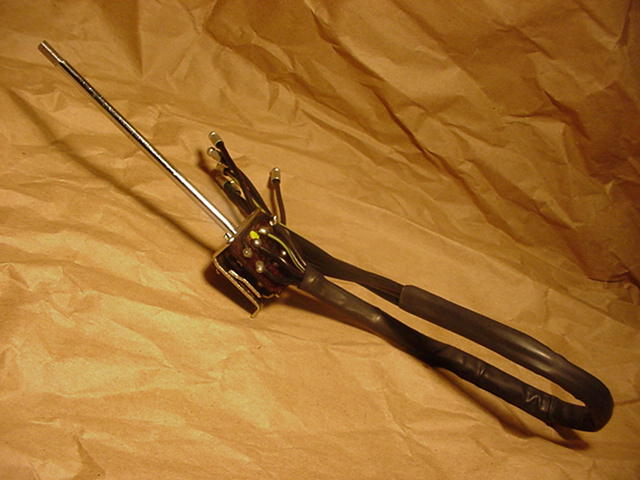

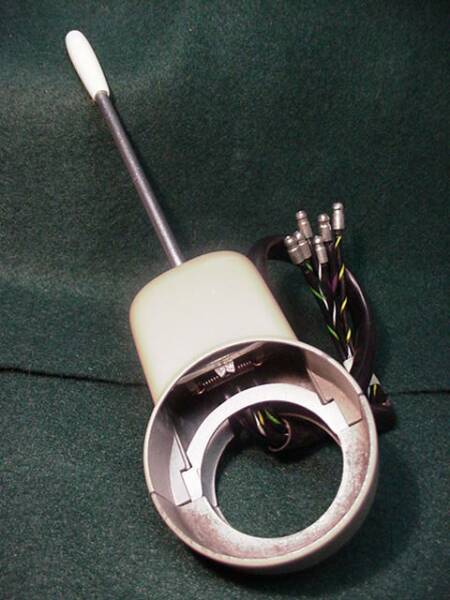

Repair / Restoration  for the Porsche 912 & Early 911 SWF Turn Signal Switch 1965 - 1970
     356 A Blinker Switch Restoration
     356 B/C Blinker Switch Restoration
     912 & Early 911 Blinker Switch Restoration
     Aston Martin
Dip & Indicator Switch Restoration
  Scroll Down  For These Topics
  Shipping Address

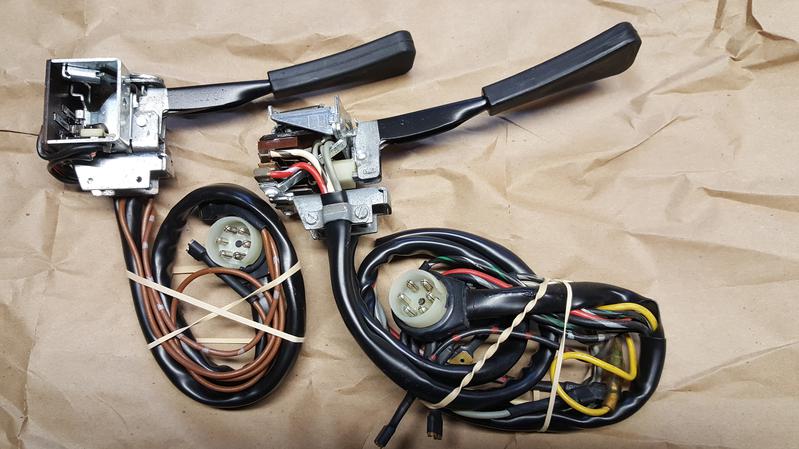

Restored DB5 / DB6 switches ready to go back to customer in England
