{Porsche 356 / 912 }
  { Fuel pump parts }
Fuel Pump Services, Kits, Parts
Order Page
          356 A/B Early Pump
           Rebuilt and tested

Brand New Part

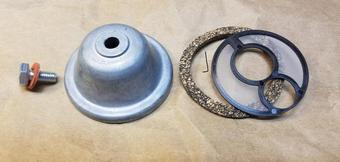

Fuel Screen Kit.   For 356 C/912 fuel pump (Late style pump)
  356 C/912 Fuel pump screen kit.
  Part # 616.108.904.100
  Introductory price:   $7.50 each kit   Includes, Free shipping
$350.00 without core

$200.00 with rebuildable core

S/H   USA $15.00
df 2012

Contact Doug, for availability and S/H outside of USA.

See: Rebuilding Page for details.
E-mail      info@type356a.com

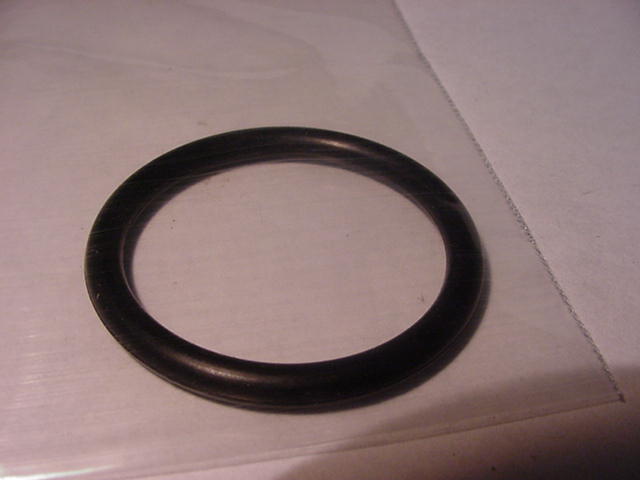

Fuel pump flange to case  O ring
This buna-n O ring fits both the A/B pump intermediate flange and  C / 912 pump lower housing flange.
Flange O ring
$3 each
GASKET NOTES: Be sure to remove old gasket and clean mating area. Put a drop or two of oil  ( motor oil ) on fiber washer. After installation of new gasket and washer, do not over tighten, just snug top down.  Wait, let gasket compress then snug again.

Original OEM gaskets were cork. They sealed well because of their compressibility but would dry out and shrink.
Later OEM replacements are of hard buna-n rubber. The buna-n seals well, but the material they use is very firm to prevent side flow. This can lead to deformation of top cap and stripping of threads as top bolt is over tighten to seal.
My gaskets are Cork/Nitrile, Military spec. SAE-AMS-C-6183
To place order:

Check ,money order or PayPal instructions. Follow link to printable order form.
Or contact Doug, via email.

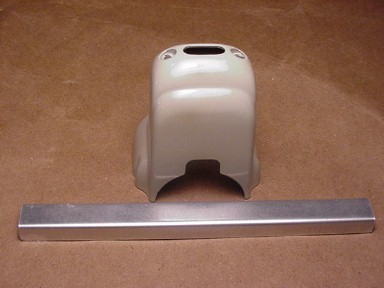

Reproduction wiring cover  for the Porsche 356A SWF Blinker Switch
Blinker wiring cover
$14 each
Blinker switch housing is for illustration only
DVG Fuel pump flange to case gasket/ shim set
Three gasket set, US made. When used together gives nice 2 mm spacing. Makes installation easy.  I have these machine die cut.
Gasket/Shim set
$6 each
( three gaskets )
DVG Style Fuel pump replacement diaphragm rebuild
Diaphragm rebuild
$22
( with core )
First quality US made fabric. Three layers of nitrile/nylon fabric machine die cut, same thickness as OEM. This is new diaphragm material installed on your core! In an effort to keep fuel pump repair costs down, this service is offered on exchange basis. I will  need your old diaphragm.

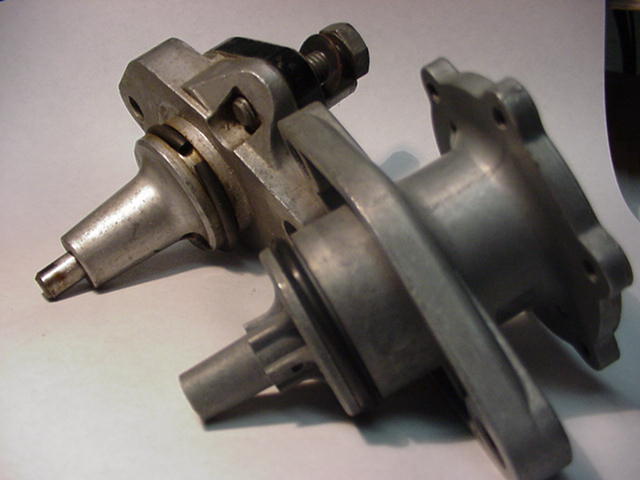

           The Early Pump
Parts For DVG 356A/B fuel pump
DVG Fuel pump diaphragm Spring
US made . Delivers  2 P.S.I. to2.4 P.S.I.  Made to my spec.
Note: I randomly check old pumps before tearing them down. Most check at 1 P.S.I. or less.
Diaphragm spring
$10
DVG Fuel pump rocker arm pin
Retaining clips included.  This pin always wears...
Rocker pin
$10
               The Late Pump
Parts For APG 356 B/C/912 fuel pump
More parts coming soon.
Rebuilt  APG Fuel Pumps ( Late style pump)
DVG Fuel pump valve retainer gasket
Machine die cut.
Retainer gasket
$2
In an effort to keep fuel pump rebuilding costs low, I have outsourced or have made key rebuilding components.

            The  Early Pump

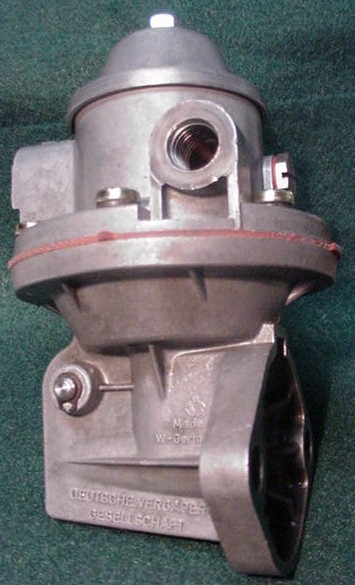

Rebuilt DVG 356A/B fuel pump
DVG Fuel pump cone top
DVG cone top OEM
$25
OEM  New, (NOS - German)..  This top always takes a lot of abuse.. If upper bolt flange is distorted, grooved or top crushed. It is almost impossible to seal fuel leaks...

Rebuilt pump $250 without core

Rebuild your pump $150 with core.

S/H   USA $15

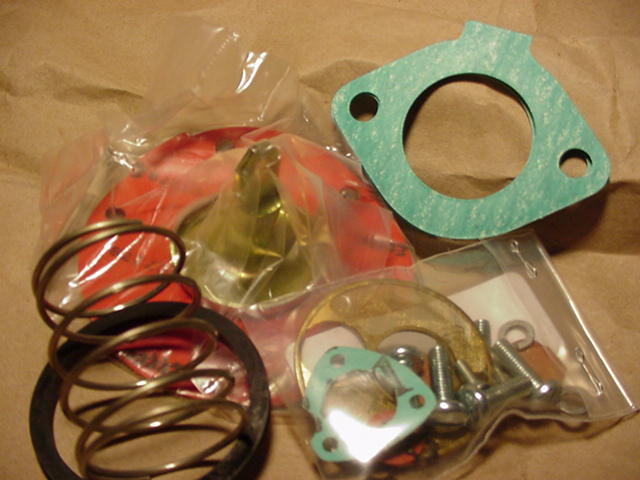

Fuel Pump Rebuild kit.   For 356 C/912 fuel pump (Late style pump)

       This is the currently  available commercial kit.
       Plus I include;  Flange to case O' ring
  356 C/912 Rebuild kit
  $45 each kit

Includes, Free     domestic shipping
   International, ask
Acceptance Mark
Acceptance Mark
All of my rebuilt fuel pumps come with 90 day, in car warranty!
All of my rebuilt fuel pumps come with 90 day, in car warranty!
Included free with each pump
My, flange to case  Gasket/Shim set
Prices good for 2012
Brand New Part

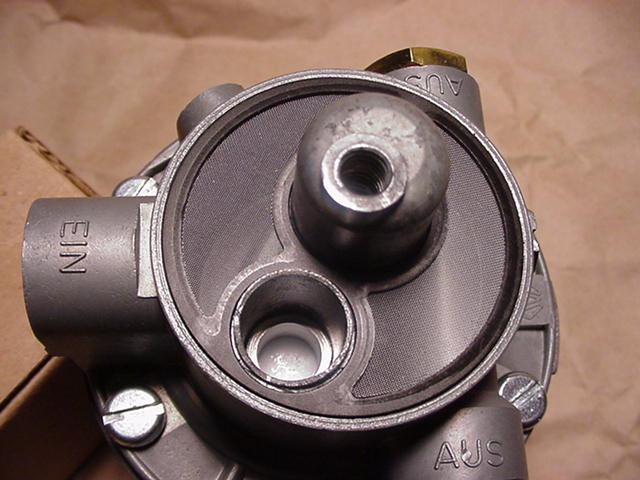

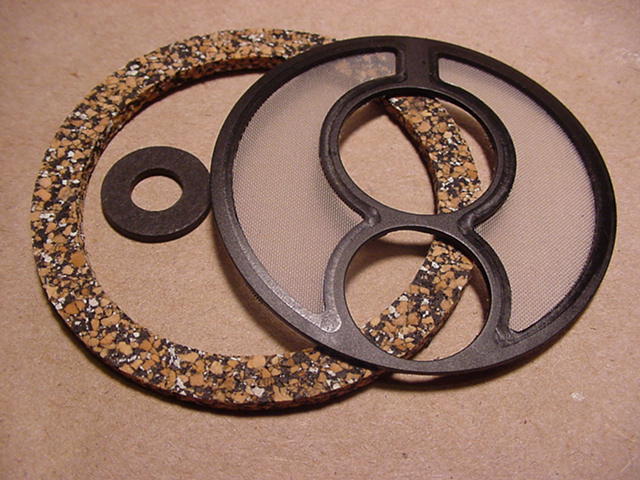

Fuel Screen Kit.   For 356 A/B fuel pump (Early style pump)
Kit includes: New; screen, gasket and fiber washer.  All parts are Ethanol compliant.

A must have for your annual fuel pump maintenance or carry as a spare in your travel kit.
  356 A/B Fuel pump screen kit.
  Part # 616.108.417.100
  Introductory price:    $7.50 each kit   Includes, Free shipping
These are my parts.

   Made in the USA
Technical notes:
Fuel filter is made of  fuel grade Nylon 6/6.
Screen is Swiss made, Nitex fabric.
Gasket is Cork/Nitrile, Military spec. SAE-AMS-C-6183
Washer is impregnated organic fiber.
Injection molded in Addison Illinois, USA.
Acceptance Mark
You do not need a PP account to use PP
and pay with credit card.
You do not need a PP account to use PP
and pay with credit card.
You do not need a PP account to use PP
and pay with credit card.
Fuel Pump Rebuild kit.   For 356 A/B fuel pump (Early style pump)
                         Also fits  356 Pre-A fuel pump

  356 A/B Rebuild kit
  $45 each kit

Includes, Free
  domestic shipping
International additional, ask
                    This is the currently  available commercial kit.
Acceptance Mark
Opel Rekord P-1 1957/1960 Fuel pump.  I can rebuild your diaphragm and provide  rebuild parts
356 Pre-A & Early VW  Fuel  Pumps Rebuilt ;    Ask!
Also fits: Mercedes-Benz; Unimog, Ponton and SL-190 fuel pumps.  If it looks like it will fit your fuel pump, it  will.
Unimog Fuel pump
Ponton / SL-190 Fuel pump
Porsche 356A Fuel pump
Nice Fit
This is what you are buying. Comes boxed
Some parts below also fit: Mercedes-Benz; Unimog, Ponton and SL-190 fuel pumps.  If it looks like it will fit your fuel pump, it  will.
IN  STOCK
Borgward Isabella,1958/1961 Fuel pump.  I can rebuild your diaphragm and provide  rebuild parts
